How to use:
-
Download Project and open file
-
compile and download to device
|
Name |
Description |
Download |
|---|---|---|
|
kchWebServerTest |
Demonstrates how to read/write CODESYS Variables from a external HTML Application. |
|
|
CanFullTest |
Demonstrates how to read/write can messages over a canbasic interface. |
|
|
VisuTreeMenuBreadCrump6 |
Simple Visu BreadCrump and Tree Navigation Example |
|
|
EtherNetIP_ExampleWPC |
EthernetIP Example with a WPC Board as a Adapter and a Control Win V3 as a Scanner. |
|
|
MultilangualUnicodeNumKeypadSample |
Simple Visu Multilangual Keypad Example |
|
|
TrendHandlingSample_01 |
Example how to use the Trend Recording Manager a export the data to a csv file. |
|
|
I2CSample.01.WPC-70 |
Demonstrates how to read/write messages over a i2c interface. |
|
|
DynRetainHandling |
Demonstrates how to handle retain variables depending on Retain Application Settings (InSRAM, OnPowerfail). |
|
|
DirectoryUtilSample |
Simple Directory Utility Sample |
|
|
LinuxConsoleSample |
Demonstrates how to call linux commands and resolve the output in CODESYS. |
|
|
AlarmHandlingSample_04 |
Demonstrates how to use the AlarmManager with a statistic analysis and a Alarm Dialog PopUp. |
|
|
TaskAndExceptionEventSampleEx |
Demonstrates how to handle exception in IEC code. |
|
|
TextCsvEditor |
Simple Visu Text and CSV Editor Example |
|
|
VisuInputHandlerSample |
Demonstrates how handle Visu Keyboard and mouse/touch inputs in CODESYS IEC code. |
|
|
CanOpenSample |
Simple CANOpen sample with master and slave states |
|
|
DialogSample.01 |
Demonstrates how to open/close a Visu Dialog in IEC code. |
|
|
EtherCatSample_EK1100 |
Simple EtherCAT sample. |
|
|
EtherCatTipps |
EtherCAT sample with master and slave states |
|
|
FrameTestSample.01 |
Demonstrates how to use visu frames in IEC code. |
|
|
ProfibusSample |
Demonstrates how to use the profibus on the device |
|
|
AuditTrailV3_03 |
Demonstrates how to use the KCH audit trail library |
|
|
OOP |
Simple OOP sample. |
|
|
MultiApps |
Demonstrates how to use multiple applications on a device. |
|
|
AlarmHandlingExt |
Demonstrates how to use the alarm interface in codesys |
|
|
SOM_iMX_UL_2_GPIO_LED_BEEPER_Sample |
SOM UL Demo Application (old, < 00969 0B) |
|
|
SOM_iMX_ULL_S_512_GPIO_LED_BEEPER_Sample |
SOM UL/ULL Demo Application (new) |
|
|
TimeDateReadWrite |
Demonstrates how to read and write the rtc and the timezone |
|
|
Networkvariables V2.3 ↔ V3.5 |
Networkvariables sample between CODESYS V3 and CODESYS V2.3 |
|
|
FileUtilitiesKCHLinux.01 |
Demonstrates how to create, delete, copy and move Folders and Files |
|
|
QRMatrixCodeSample |
QRCode and MatrixCode Generator |
|
|
SetStartVisuByClientName |
Demonstrates how to set the start visu depending on the clientname from URL |
|
|
TestNicWithSameSubNet |
Demonstrates how to use for example modbus tcp with the same subnet on both network adapter.
|
|
|
SymbolLibTest |
Symbol Library Sample |
|
|
NetworkSample |
Reading and Writing Network Settings with persistent function |
|
|
SharedMemoryExample |
Using shared memory to exchange data with an application written in C |
|
|
MnFPDFSample |
Demonstrates how to create a PDF document. |
|
|
MySQLSample |
MySQL client example |
|
|
MnVisuElementsSample |
Demonstrates how to use the MnVisuElements |
|
|
eeprom-env-sample |
Demonstrates how to use the optional eeprom on the device to read and write environment variables |
|
|
DefaultLinux2 |
Default CODESYS Application preloaded in CODESYS images |
|
|
USBScannerVisuSample |
Demonstrates how to use a USB Barcode Reader. |
|
|
Backup / Restore example (for Images with SWU-Update) |
Create a Software Backup (SWU File) from Device onto an external disc and "Restore" this Image (SWU File) from external disc back to Device. |
|
|

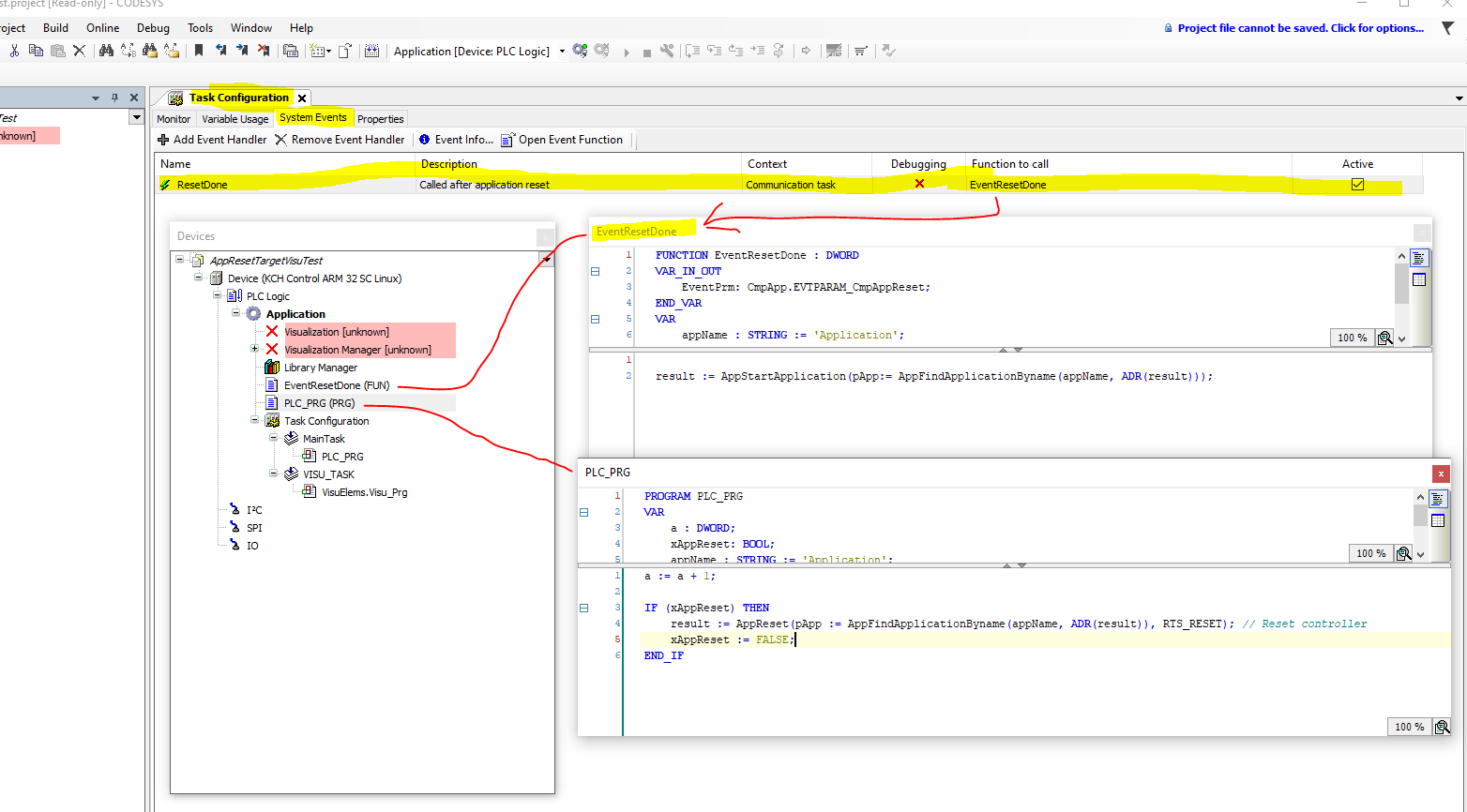

Reset an Application and restart it |
Resets an application and restarts it with the "ResetDone" system event by setting a callback function that restarts the application. |
AppResetTargetVisuTest.project Screenshot: CODESYS-ApplicationResetAndRestart.PNG
|
|
System/Board Infos |
Sample how to read board/system infos:
|
|
|
WebVisu WebConfigView Sample |
Demonstrates how to show the local WebConfig included in the CODESYS WebVisu |
|
|
GPIO Interrupt Handling Sample |
Demonstrates how to integrate and handle GPIO Interrupts. |
