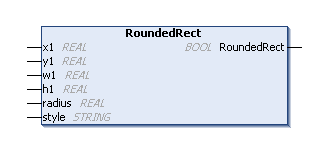

RoundedRect

Draws a round rectangle. The round rectangle can optionally be provided with a frame and a background.

Syntax

C++

METHOD PUBLIC RoundedRect : BOOL
VAR_INPUT
    x1 : REAL;
    y1 : REAL;
    w1 : REAL;
    h1 : REAL;
    radius : REAL;
    style : STRING := '';
END_VAR

Parameters

Parameter	Description
x1	Horizontal position (X-axis) of the left/upper corner of the rectangle to be drawn.
y1	Vertical position (Y-axis) of the left/upper corner of the rectangle to be drawn.
w1	width of the rectangle to be drawn.
h1	Height of the rectangle to be drawn.
radius	Radius of the corners.
style	Style in which the rectangle is to be drawn. Possible values are:: No specification or D: Draw frame only F: Draw filled without frame FD: Fill in and draw with frame
Return value	Status of the call.
