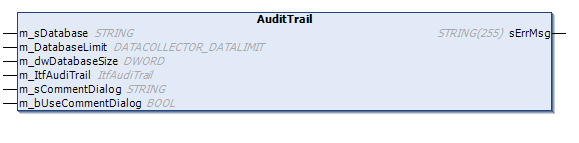

AuditTrail (FB)

Function module for AuditTrail Handling.

This module is already instantiated in the library as global variable g_AuditTrail.


Syntax



C++
FUNCTION_BLOCK AuditTrail IMPLEMENTS VisuElems.IValueChangedListener
VAR_INPUT
    m_sDatabase : STRING := '\mnplc\plclogic\AuditTrail.db';
    m_DatabaseLimit : DATACOLLECTOR_DATALIMIT := DATACOLLECTOR_DATALIMIT.DATACOLLECTOR_DATALIMIT_NONE;
    m_dwDatabaseSize : DWORD := 10000;
    m_ItfAudiTrail : ItfAudiTrail;
    m_sCommentDialog : STRING := 'AuditTrail.InputAudit'
    m_bUseCommentDialog : BOOL := TRUE;
END_VAR
VAR_OUTPUT
    sErrMsg: STRING(255);    // Error Messages
END_VAR


Parameters

Parameter

Beschreibung

m_sDatabase

Path and name of the AuditTrail database

m_DatabaseLimit

Limit entry:
DATACOLLECTOR_DATALIMIT_NONE: No limit
DATACOLLECTOR_DATALIMIT_ENTRIES: Number of Entries
DATACOLLECTOR_DATALIMIT_SIZE: size of the file

m_dwDatabaseSize

Value for m_DatabaseLimit

m_ItfAudiTrail

Interface for Callback Functions of the Audit Trail

m_sCommentDialog

Comment Dialog Name in the CODESYS Visu
Here you can optionally refer to your own comment dialog.
In case of an own dialog, the interface as used in the dialog 'AuditTrail.InputAudit' must be adhered to.

m_bUseCommentDialog

Activating/deactivating the comment function in the CODESYS Visu

sErrMsg

Error messages as text.


Example

See: AuditTrailSample.project


Requirements


Remarks
