Application Programming with Visual Studio Code and WSL

Visual Studio Code (VS Code) is a powerful, modern, open-source code editor that can be used to develop and debug C/C++ applications on Variscite System on Modules.

This guide demonstrates how to create and debug a C++ application using VS Code on the KCH Device.

Preparing Development PC

Install Visual Studio Code

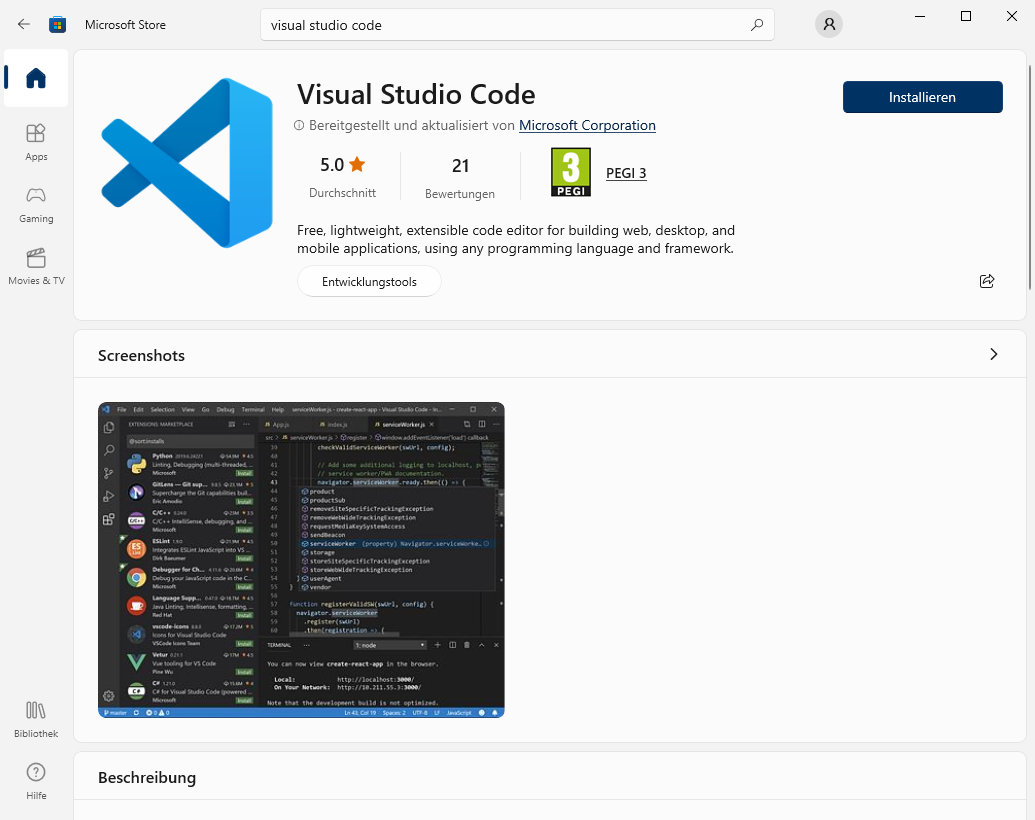

Open the Microsoft Store App and install Visual Studio Code

Install Visual Studio Code Extensions

Initially, if you haven’t used VSCode for C++ projects on WSL, you will need to install a few extensions, so everything runs smoothly. For this reason, the list below contains the names of all extensions you need to install, and the reason for each one.

• Remote WSL: This extension allows you to open workspaces from your WSL installation. Once installed, you can navigate to the directory you want in your WSL terminal, and simply type code . to open it as a VSCode workspace.

• CMake Tools: This Microsoft extension enables the support for CMake projects in VS Code, it will allow you to configure and build your CMake projects.

• C/C++: Enables C++ language support for Visual Studio Code (syntax highlighting, etc).

• C/C++ Extension Pack: Includes some of the extensions mentioned in this section, and a few more. Interestingly, this extension pack contains all of the “nice to have” extensions for C++ development, such as CMake syntax highlighting, C++ syntax colour schemes, etc.

• C/C++ Extension UI Themes: VS Code has since provided an API for semantic colorization. The C/C++ Extension has transitioned from its own implementation to this new API. These themes now include colors for some of the new semantic token scopes.

• Makefile Tools: This extension provides IntelliSense configurations to the VS Code C/C++ Extension for Makefile projects. It also provides convenient commands to build, debug, and run your targets.

Finally, if you haven’t installed extensions in VSCode before, simply click on the extension UI button  , search for the extensions we mentioned, and install them!

Enable WSL

Windows Subsystem for Linux (WSL) is an optional feature on Windows 10. You can enable it through the Windows Features dialog.

Windows Features dialog

In the Windows search bar, type 'features' to bring up the Turn Windows Features on and off dialog. Scroll down and check Windows Subsystem for Linux.

Select OK and you will be prompted to restart Windows.

Install Ubuntu on WSL

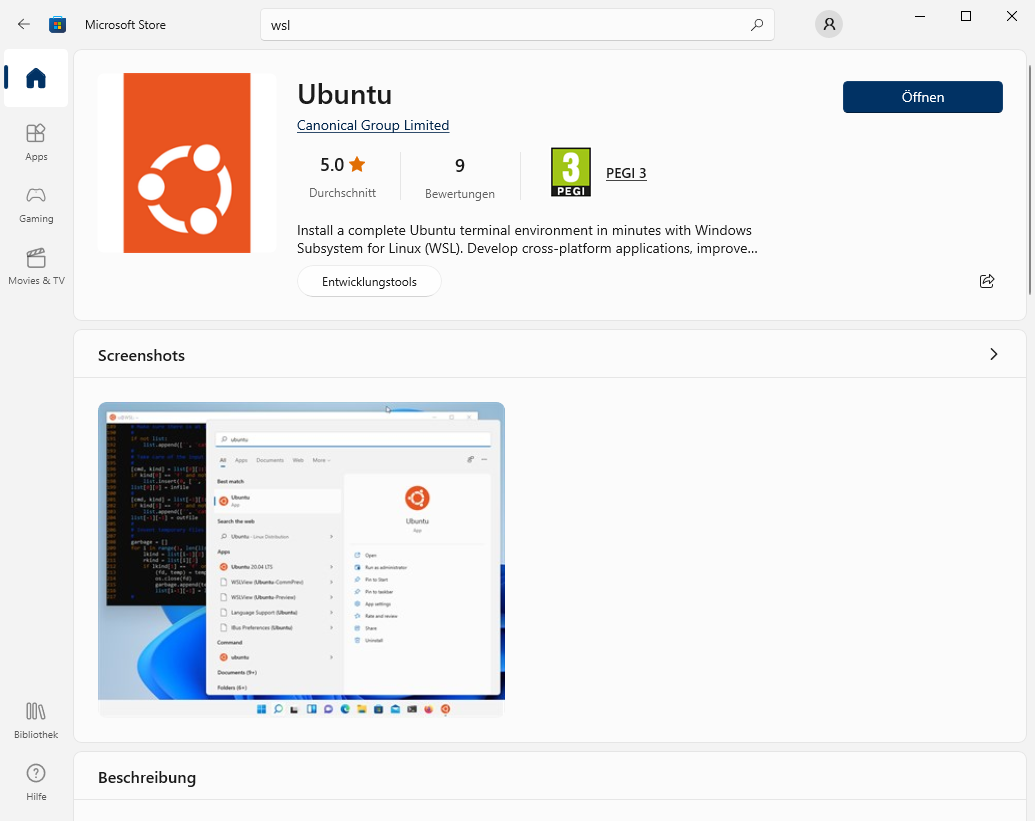

You install Linux distributions for WSL from the Microsoft Store. You can use the store app, or search for a Linux distro in the Windows search bar. Choose the Linux distribution you want to install (for example Ubuntu) and follow the prompts.

And when done, Launch the Linux over the Start Menu  to get started. This will open a Linux terminal and complete the installation. You'll need to create a user ID and password since you are setting up a full Linux instance. You are now running Linux on Windows.

Install SDK on Ubuntu

All SDK/Toolchain are available under:

ftp://kontron_pub:WENZtA6i@ftp.kontron.ch/WebPanel/SDK/

The Windows Disks are automaticaly mounted in the folder "/mnt/".

Install the SDK directly from the Terminal (for example: "/mnt/<windows path to sdk>")

1. Download the Linux SDK depending your device.

2. Set the SDK installation file executable using the commandline: chmod +x <Linux SDK File>

3. Install the SDK File using the commandline: ./<Linux SDK File>Choose a installation directory for example "/home/<user>/sdk/<sdkname>"

Install gdb on Ubuntu

For Remote Debugging on your Device install the gdb and sshpass.

sudo apt update
sudo apt install gdb-multiarch sshpass

Preparing Device

Install gdbserver

For Remote Debugging on your Device install the gdb server.

opkg update
opkg install gdbserver

Create, cross compile, and run a new "Hello, World!" project with g++ and gcc

Open a new terminal, create an empty project directory and open VS Code:

$ mkdir ~/var-hello-world-cpp
$ cd ~/var-hello-world-cpp
$ code .

This will launch VS Code with ~/var-hello-world-cpp as working directory (which is currently empty):

Next, we will create the following files:

To create a new file or folder in VS Code, right click in the VS Code explorer view and select New File or New Folder:

Create a new file called main.cpp:

main.cpp:

#include <stdio.h>

int main(int argc, char *argv[]) {
    printf("Hello, World!\n");
    return 0;
}

Create a new Makefile to build hello.bin:

Makefile:

all: main.cpp
	$(CXX) $(CXXFLAGS) -Og main.cpp -g -o hello.bin
clean:
	rm -f hello.bin

Create a new folder named .vscode. Then, create a new file .vscode/settings.json

.vscode/settings.json:

{
	"KCH": {
		/* Target Device Settings */
		"TARGET_IP":"192.168.1.125",

		/* Project Settings */
		"PROGRAM":"hello.bin",

		/* Yocto SDK Configuration */
		"ARCH":"aarch64-ktn-linux",
		"OECORE_NATIVE_SYSROOT":"/home/user/sdk/115550L/sysroots/x86_64-ktnsdk-linux",
		"SDKTARGETSYSROOT": "/home/user/sdk/115550L/sysroots/aarch64-ktn-linux",

		/* Yocto SDK Constants */
		"CC_PREFIX": "${config:KCH.OECORE_NATIVE_SYSROOT}/usr/bin/${config:KCH.ARCH}/${config:KCH.ARCH}-",
		"CXX": "${config:KCH.CC_PREFIX}g++ --sysroot=${config:KCH.SDKTARGETSYSROOT}",
		"CC": "${config:KCH.CC_PREFIX}gcc --sysroot=${config:KCH.SDKTARGETSYSROOT}",
	}
}

The table below describes the global variables in settings.json. They can be accessed in other json files, for example ${config:KCH.TARGET_IP}:

Create a new file .vscode/tasks.json. tasks.json has three root objects:

• options: Define CC and CXX environment variables for the Makefile.

• presentation: Configures the behavior of VS Code's integrated Terminal for all tasks.

• tasks: An array of task configurations. The example below creates a single 'build task that runs the Makefile when the VS Code build task is executed.

.vscode/tasks.json:

{
  "version": "2.0.0",
  /* Configure Yocto SDK Constants from settings.json */
  "options": {
      "env": {
          "CXX": "${config:KCH.CXX}",         /* Used by Makefile */
          "CC": "${config:KCH.CC}",           /* Used by Makefile */
      }
   },
   /* Configure integrated VS Code Terminal */
   "presentation": {
      "echo": false,
      "reveal": "always",
      "focus": true,
      "panel": "dedicated",
      "showReuseMessage": true,
  },
  "tasks": [
    /* Configure launch.json (debug) preLaunchTask Task */
    {
        "label": "var-deploy-gdb",
        "isBackground": true,
        "problemMatcher":{
            "base": "$gcc",
            "background": {
                "activeOnStart": true,
                "beginsPattern":  "Deploying to target",
                "endsPattern":  "Starting GDB Server on Target"
            }
        },
        "type": "shell",
        "command": "sh",
        "args": [
            "var-deploy-gdb.sh",
            "${config:KCH.TARGET_IP}",
            "${config:KCH.PROGRAM}"
        ],
        "dependsOn": ["build"],
    },
    /* Configure Build Task */
    {
        "label": "build",
        "type": "shell",
        "command": "make clean; make -j$(nproc)",
        "problemMatcher": ["$gcc"]
    },
]
}

Create vscode/c_cpp_properties.json to configure the include path for IntelliSense.

.vscode/c_cpp_properties.json:

{
    "configurations": [
        {
            "name": "Linux",
            "includePath": [
                "${workspaceFolder}/**",
                "${config:KCH.SDKTARGETSYSROOT}/usr/include/**"
            ]
        }
    ],
    "version": 4
}

Create var-deploy-gdb.sh to deploy the application and start the remote gdbserver.

var-deploy-gdb.sh:

#!/bin/bash
readonly TARGET_IP="$1"
readonly PROGRAM="$2"
readonly TARGET_DIR="/home/root"

# Must match startsPattern in tasks.json
echo "Deploying to target"

# kill gdbserver on target and delete old binary
sshpass -p root ssh root@${TARGET_IP} "sh -c '/usr/bin/killall -q gdbserver; rm -rf ${TARGET_DIR}/${PROGRAM}  exit 0'"

# send the program to the target
sshpass -p root scp ${PROGRAM} root@${TARGET_IP}:${TARGET_DIR}

# Must match endsPattern in tasks.json
echo "Starting GDB Server on Target"

# start gdbserver on target
sshpass -p root ssh -t root@${TARGET_IP} "sh -c 'cd ${TARGET_DIR}; gdbserver localhost:3000 ${PROGRAM}'"

Create .vscode/launch.json to add a configuration for debugging using the C/C++ extension

.vscode/launch.json:

{
    "version": "0.2.0",
    "configurations": [{
        "name": "GDB debug",
        "type": "cppdbg",
        "request": "launch",
        "program": "${config:KCH.PROGRAM}",
        "args": [],
        "stopAtEntry": true,
        "cwd": "${workspaceFolder}",
        "environment": [],
        "console": "integratedTerminal",
        "MIMode": "gdb",
        "targetArchitecture": "arm64",
        "preLaunchTask": "var-deploy-gdb",
        "setupCommands": [{
            "description": "Enable pretty-printing for gdb",
            "text": "-enable-pretty-printing",
            "ignoreFailures": true
        }],
        "miDebuggerPath": "/usr/bin/gdb-multiarch",
        "miDebuggerServerAddress": "${config:KCH.TARGET_IP}:3000",
    }]
}

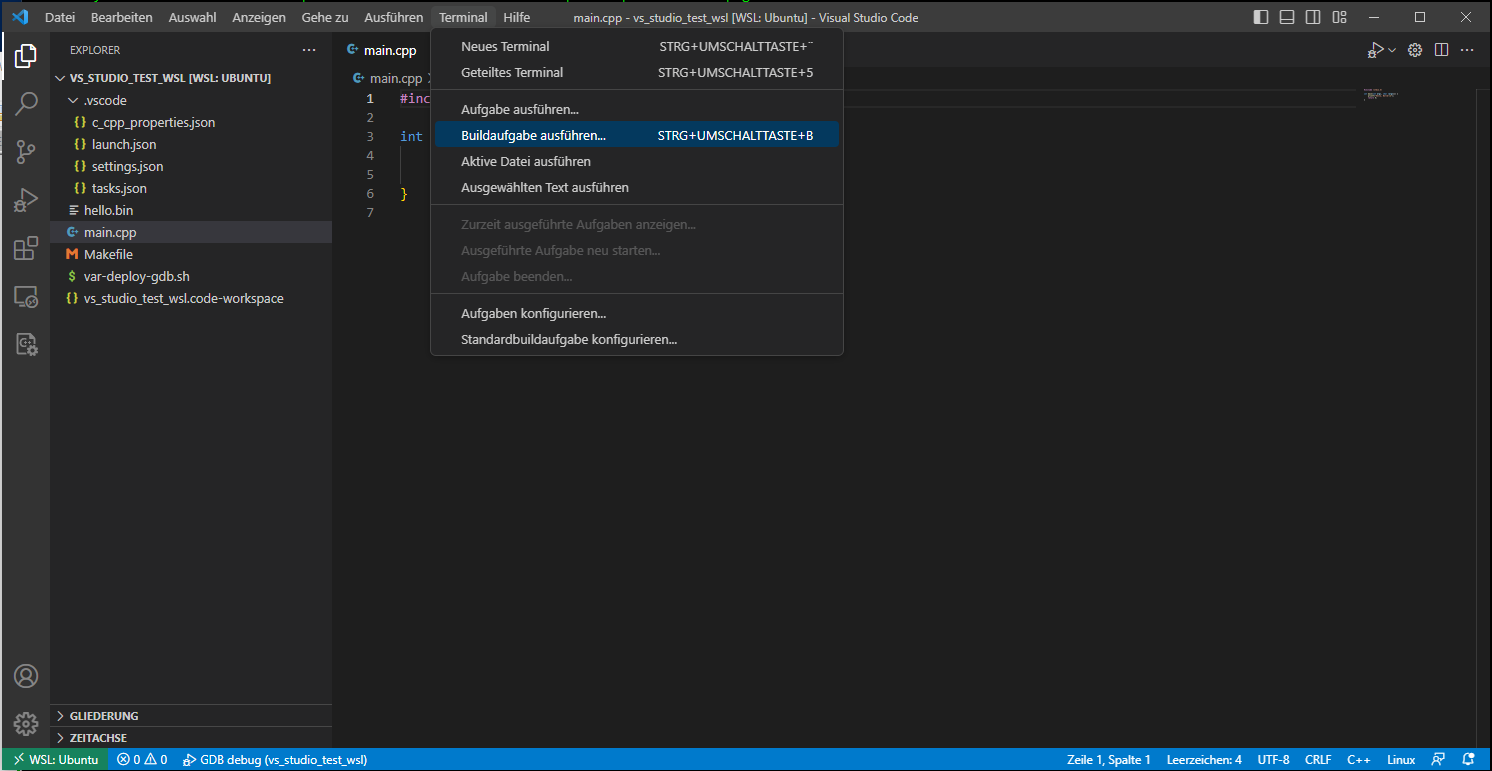

Cross compile the project by selecting Terminal->Run Build Task... or entering Ctrl+Shift+B and selecting Build:

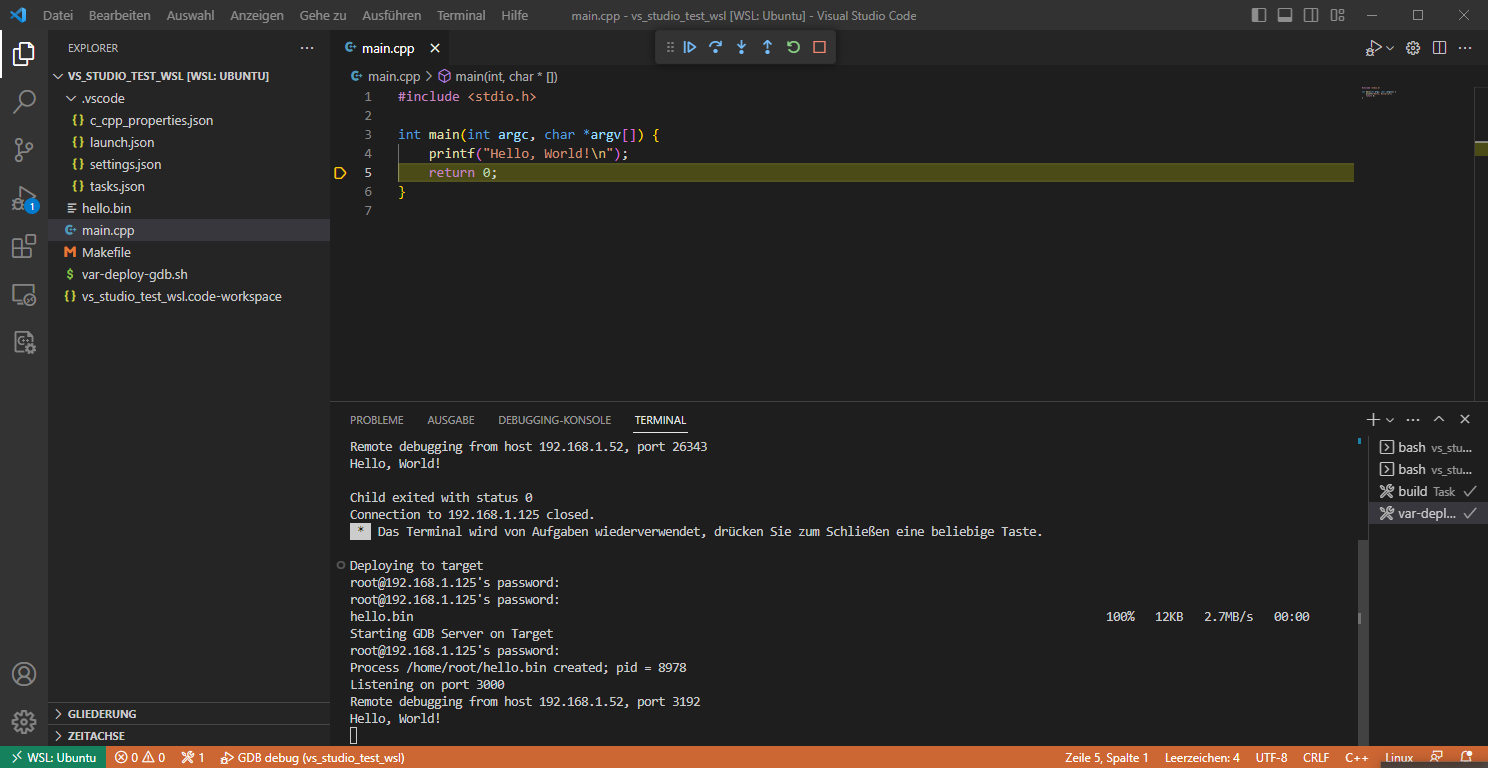

A new debugging session can be started by selecting Run->Start Debugging or by pressing 'F5' on the keyboard. VS Code will switch to the debug perspective and launch a gnome-terminal running gdbserver on the target device:

Example Project Source Code:

vs_studio_demo_cpp.zip

Create, cross compile, and run a new "Hello, World!" project with cmake

Open a new terminal, create an empty project directory and open VS Code:

$ mkdir ~/var-hello-world-cmake
$ cd ~/var-hello-world-cmake
$ code .

This will launch VS Code with ~/var-hello-world-cmake as working directory (which is currently empty):

Next, we will create the following files:

To create a new file or folder in VS Code, right click in the VS Code explorer view and select New File or New Folder:

Create a new file called main.cpp:

main.cpp:

#include <stdio.h>

int main(int argc, char *argv[]) {
    printf("Hello, World!\n");
    return 0;
}

Create a new CMakeLists.txt to build hello.bin:

CMakeLists.txt:

project(HelloWorld)
cmake_minimum_required(VERSION 3.0)

add_executable(hello.bin main.cpp)

Create a new folder named .vscode. Then, create a new file .vscode/settings.json

.vscode/settings.json:

{
	"KCH": {
		/* Target Device Settings */
		"TARGET_IP":"192.168.1.125",

		/* Project Settings */
		"PROGRAM":"hello.bin",

		/* Yocto SDK Configuration */
		"ARCH":"aarch64-ktn-linux",
		"OECORE_NATIVE_SYSROOT":"/home/user/sdk/115550L/sysroots/x86_64-ktnsdk-linux",
		"SDKTARGETSYSROOT": "/home/user/sdk/115550L/sysroots/aarch64-ktn-linux",

		/* Yocto SDK Constants */
		"CC_PREFIX": "${config:KCH.OECORE_NATIVE_SYSROOT}/usr/bin/${config:KCH.ARCH}/${config:KCH.ARCH}-",
		"CXX": "${config:KCH.CC_PREFIX}g++ --sysroot=${config:KCH.SDKTARGETSYSROOT}",
		"CC": "${config:KCH.CC_PREFIX}gcc --sysroot=${config:KCH.SDKTARGETSYSROOT}",
	}
}

The table below describes the global variables in settings.json. They can be accessed in other json files, for example ${config:KCH.TARGET_IP}:

Create a new file .vscode/tasks.json. tasks.json has three root objects:

• options: Define CC and CXX environment variables for the Makefile.

• presentation: Configures the behavior of VS Code's integrated Terminal for all tasks.

• tasks: An array of task configurations. The example below creates a single 'build task that runs the CMake when the VS Code build task is executed.

.vscode/tasks.json:

{
  "version": "2.0.0",
  /* Configure Yocto SDK Constants from settings.json */
  "options": {
      "env": {
          "CXX": "${config:KCH.CXX}",         /* Used by Makefile */
          "CC": "${config:KCH.CC}",           /* Used by Makefile */
      }
   },
   /* Configure integrated VS Code Terminal */
   "presentation": {
      "echo": false,
      "reveal": "always",
      "focus": true,
      "panel": "dedicated",
      "showReuseMessage": true,
  },
  "tasks": [
    /* Configure launch.json (debug) preLaunchTask Task */
    {
        "label": "var-deploy-gdb",
        "isBackground": true,
        "problemMatcher":{
            "base": "$gcc",
            "background": {
                "activeOnStart": true,
                "beginsPattern":  "Deploying to target",
                "endsPattern":  "Starting GDB Server on Target"
            }
        },
        "type": "shell",
        "command": "sh",
        "args": [
            "var-deploy-gdb.sh",
            "${config:KCH.TARGET_IP}",
            "${config:KCH.PROGRAM}"
        ],
        "dependsOn": ["build"],
    },
    /* Configure Build Task */
    {
        "label": "build",
        "type": "shell",
        "command": "rm -rf build; mkdir build; cd build; cmake .. ; make -j$(nproc)",
        "problemMatcher": ["$gcc"]
    },
]
}

Create vscode/c_cpp_properties.json to configure the include path for IntelliSense.

.vscode/c_cpp_properties.json:

{
    "configurations": [
        {
            "name": "Linux",
            "includePath": [
                "${workspaceFolder}/**",
                "${config:KCH.SDKTARGETSYSROOT}/usr/include/**"
            ]
        }
    ],
    "version": 4
}

Create var-deploy-gdb.sh to deploy the application and start the remote gdbserver.

var-deploy-gdb.sh:

#!/bin/bash
readonly TARGET_IP="$1"
readonly PROGRAM="$2"
readonly TARGET_DIR="/home/root"

# Must match startsPattern in tasks.json
echo "Deploying to target"

# kill gdbserver on target and delete old binary
sshpass -p root ssh root@${TARGET_IP} "sh -c '/usr/bin/killall -q gdbserver; rm -rf ${TARGET_DIR}/${PROGRAM}  exit 0'"

# send the program to the target
sshpass -p root scp build/${PROGRAM} root@${TARGET_IP}:${TARGET_DIR}

# Must match endsPattern in tasks.json
echo "Starting GDB Server on Target"

# start gdbserver on target
sshpass -p root ssh -t root@${TARGET_IP} "sh -c 'cd ${TARGET_DIR}; gdbserver localhost:3000 ${PROGRAM}'"

Create .vscode/launch.json to add a configuration for debugging using the C/C++ extension

.vscode/launch.json:

{
    "version": "0.2.0",
    "configurations": [{
        "name": "GDB debug",
        "type": "cppdbg",
        "request": "launch",
        "program": "${config:KCH.PROGRAM}",
        "args": [],
        "stopAtEntry": true,
        "cwd": "${workspaceFolder}/build",
        "environment": [],
        "console": "integratedTerminal",
        "MIMode": "gdb",
        "targetArchitecture": "arm64",
        "preLaunchTask": "var-deploy-gdb",
        "setupCommands": [{
            "description": "Enable pretty-printing for gdb",
            "text": "-enable-pretty-printing",
            "ignoreFailures": true
        }],
        "miDebuggerPath": "/usr/bin/gdb-multiarch",
        "miDebuggerServerAddress": "${config:KCH.TARGET_IP}:3000",
    }]
}

Cross compile the project by selecting Terminal->Run Build Task... or entering Ctrl+Shift+B and selecting Build:

A new debugging session can be started by selecting Run->Start Debugging or by pressing 'F5' on the keyboard. VS Code will switch to the debug perspective and launch a gnome-terminal running gdbserver on the target device:

Example Project Source Code:

vs_studio_test_wsl_cmake.zip

Tipps

Opening a terminal in WSL

Opening a terminal in WSL from VS Code is simple. Once folder is opened in WSL, any terminal window you open in VS Code (Terminal > New Terminal) will automatically run in WSL rather than locally.

You can also use the code command line from this same terminal window to perform a number of operations such as opening a new file or folder in WSL. Type code --help to see what options are available from the command line.
